During the setup and configuration session, your Atlas Support Representative will ask you to input your account information and help you configure your payment type details. Please have your account information packet ready.
1. Account Information

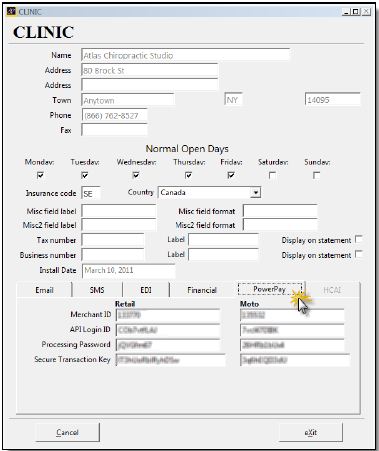

Your Payments Gateway Account information for the Retail and Moto accounts should be entered into Atlas through the Clinic Details window.
Setup > Initial Setup > Clinic DetailsBe sure to copy the information exactly.
Also be sure to enter the correct information into the
Retail and Moto sides.
- Merchant ID found in Payment Gateway paperwork
- API Login ID (generated at Payment Gateway website – see below)
- Processing Password sent in document from Payment Gateway
- Secure Transaction Key (generated at Payment Gateway website – see below)

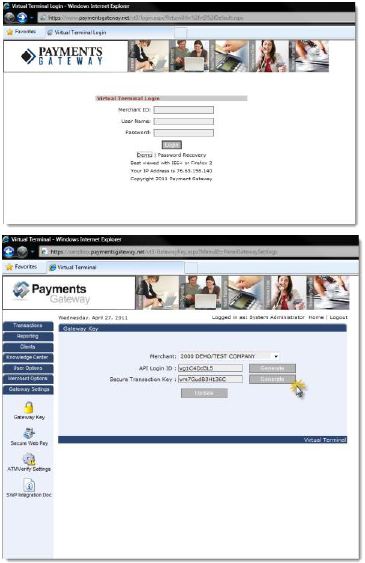

To Generate Required Keys:
1. Navigate to http://paymentsgateway.com and login using the credentials supplied in your Approval Paperwork.
2. Click into the Gateway Settings area from the menu on the left side of the screen
3. Open the ‘Gateway Key’ generator
4. Generate the necessary API Login ID and Secure Transaction Key and enter the codes into the Clinic Details window in Atlas.
Refer to the section above to ensure the numbers
generated are entered into the correct boxes.

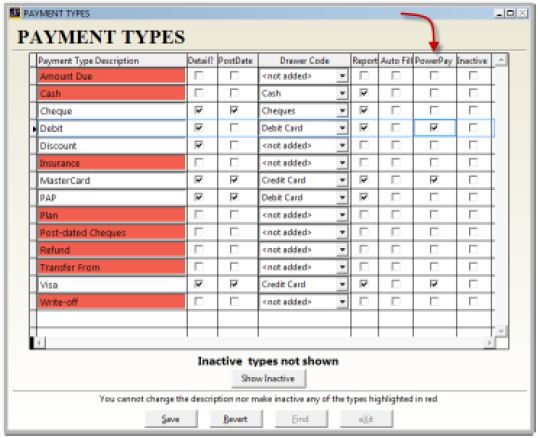

2. Select Payment Types to Associate:
The final step in configuration is to associate specific Payment Types to work with the PowerPay
system.
Setup > Initial Setup > Payment Types
To edit the Payment Types window, click the EDIT button
located at the bottom. Check the PowerPay check box for
each Payment Type you need to associate with PowerPay
processing. Usually this will be only your Credit Cards and
checks.
As an added option, select the Auto Fill feature for these Payment Types also. This feature will automatically fill in the Amount Tendered box equal to the Total Amount Charged when entering a transaction – saving one more step in the process.
MagTek SureSwipe Card Reader Part Number: 21040145
After this configuration you will also have to plug in your MagTek
Sureswipe USB card reader. Instructions and drivers (if required)
will be included with the reader.
NOTE: image may differ from actual product
Swipe Readers are not included with Atlas or from Payments Gateway. Many online retailers including www.magtek.com
